GALION-GODWIN DUMP BODIES

As the nations oldest operating name in dump truck equipment, Galion-Godwin Truck Body Co. is one of the most recognizable names in the truck industry. Galion has a long standing reputation for consistent quality and industry leading product innovation at competitive pricing. Being a top level truck equipment manufacturer for over a century doesn't happen by accident. Attention to detail and constant improvement is our formula for success.

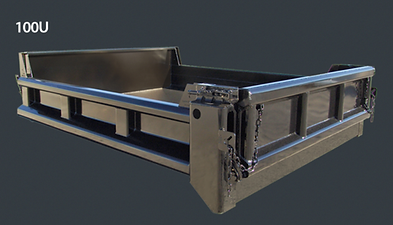

The Galion 100U body is designed for superior service on 9900 -19500 GVWR cab/chassis'. The 100U features all 10 gauge high tensile steel floors, tailgate, head sheets and sides. Front corner posts, two intermediate side braces, full depth rear corner posts and boxed "material shedding" top rails are also standard.

The Galion 130U body is designed for superior service on 9900 - 19500 GVWR cab/chassis'. This bodies feature a 3/16" high tensile steel floor, 10 gauge high tensile tailgate, head sheets and sides. Front corner posts, smooth sides, full depth rear corner posts, crossmemberless understructure, and boxed "material-shedding" top rails are also standard.

The Galion PLD body is designed for superior service on 12000 - 26000 GVWR cab/chassis'. It features all 10 gauge high tensile steel floors, tailgate, head sheets and single V brace sides. 10" full depth rear corner posts and boxed "material-shedding" top rails are also standard. The PLD is designed to operate with scissor type conversion hoists.

The Galion 400U smooth side body is especially designed for heavy-duty hauling requirements. It is well-suited for construction work, aggregate hauling and bucket loading. All units are built of tough high tensile steel to virtually outlast and outperform all others. Recommended for single axle underbody hoist applications.

The Galion 450U is a heavy duty body that "beats the cold" during low temperature use with integral heat ducts. The 450U is well suited for aggregate hauling/spreading, construction and batching work...at any time of the year, anywhere on the globe! This heavy duty body features full depth rear corner posts and bolster, a 6-panel tailgate and continuous weld throughout.

The Galion 500U/T is excellent for over-the highway aggregate hauling. It is also Ideal for construction and batching work, and for hauling and spreading stone, sand, gravel and other aggregates. Galion 500U/T series bodies utilize high tensile steel throughout for best resistance to abrasion. The Galion 500U/T is the largest of Galion's steel body product line, and can be used with underbody and telescopic hoists.
